Energy and Exergy Analysis of Apple Drying Using Fluidized Bed Method: A Comparison of GMDH Neural Network and ANN-GA Models

Vahedi Torshizi, Mohammad; Rokhbin, Arash; Ziaratban, Armin

doi:10.22069/bere.2024.22896.1000

Document Type : Original Article

Authors

¹ Department of Biosystems Engineering, Tarbiat Modares University, Tehran, Iran

² Department of Biosystem Engineering, Gorgan University of Agricultural Sciences and Natural Resources, Gorgan, Iran

³ Department of Biosystems Mechanical Engineering, Gorgan University of Agricultural Sciences and Natural Resources, Gorgan, Iran

10.22069/bere.2024.22896.1000

Abstract

This research, which has practical implications for the food engineering and processing industry, estimated the energy and exergy of apple drying using a Group Method of Data Handling (GMDH) neural network and a hybrid artificial neural network-genetic algorithm (ANN-GA). Osmotic and natural samples were tested in the form of apple cubes with a height of 5 mm and sides of 10 mm ×10 mm, 8 mm × 8 mm, and 6 mm × 6 mm dried by fluidized bed method at three air velocities of 4, 6, and 8 m/s and temperatures of 40, 45, and 50℃. The results showed that energy consumption, energy use ratio, exergy efficiency, and exergy loss were elevated by increasing the temperature and air velocity and reducing the sample sizes in natural and osmotic samples, which were directly relevant to the industry. It was also observed that the GMDH neural network for energy consumption, energy use ratio, exergy loss, and exergy efficiency have linear correlation coefficients (R) of 0.95097, 0.92202, 0.91464, and 0.91258, respectively, suggesting that it outperforms the ANN-GA. The weakest performance of the GMDH network was associated with the exergy efficiency. The ANN-GA had the best energy consumption and lowest exergy loss performance.

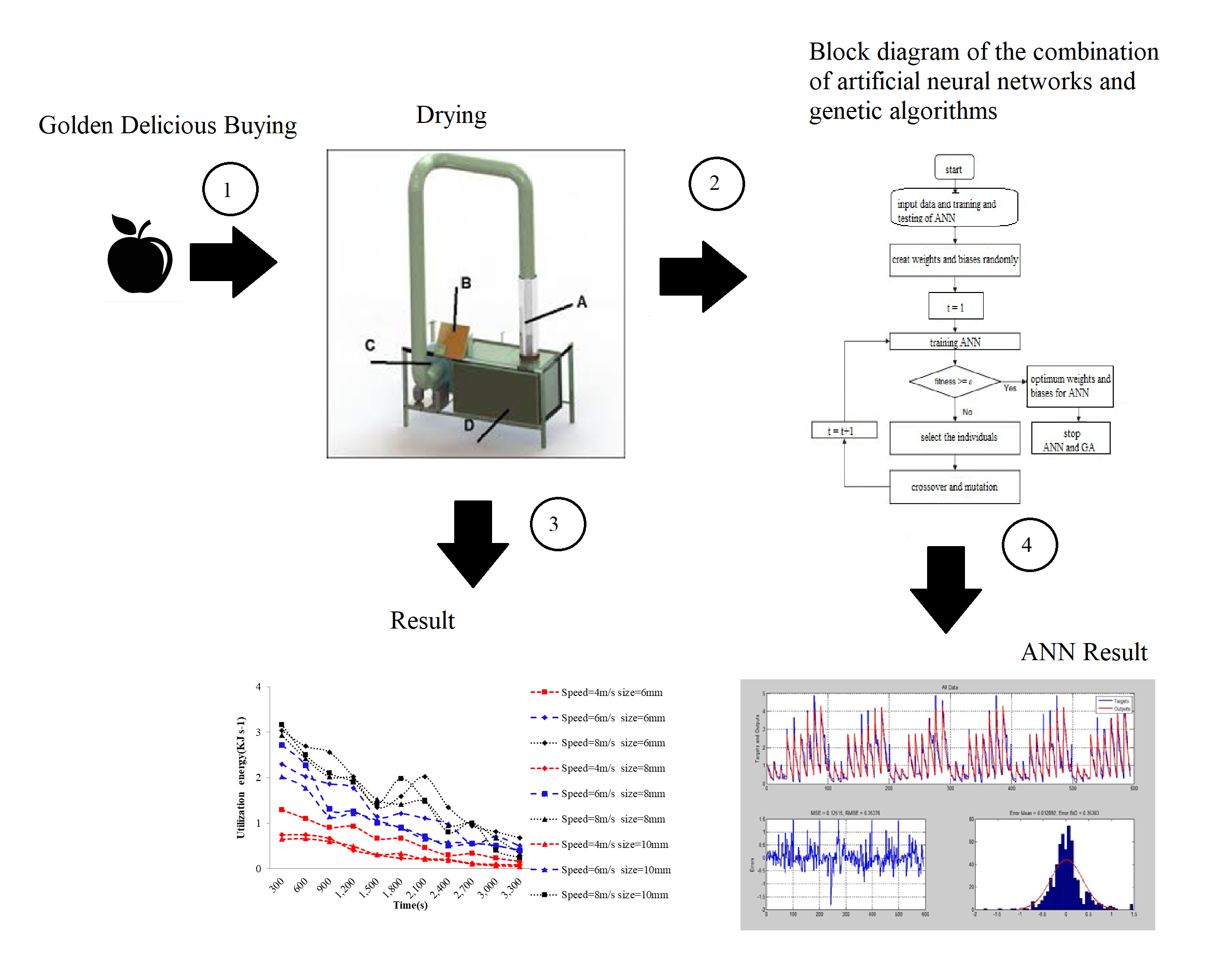

Graphical Abstract

Keywords

Research Highlights:

Study compares GMDH and ANN-GA models in predicting energy use and exergy in apple drying
Higher heat, faster air, and smaller samples improve drying energy and exergy efficiency.

· GMDH predicted energy better than ANN-GA, aiding drying system energy management

References

Aghbashlo, M., Kianmerh, M. H., & Arabhosseini, A. (2008). Energy and exergy analysis of thin-layer drying of potato slices in a semi-industrial continous band dryer. Drying Technology, 26, 1501–1508. https://doi.org/10.1080/07373930802412231

Akkoyunlu, M. C., Pekel, E., Akkoyunlu, M. T., & Pusat, S. (2020). Using hybridized ANN-GA prediction method for DOE performed drying experiments. Drying Technology, 38(11), 1393–1399. https://doi.org/10.1080 /07373937.2020.1750027

Akpinar, E. (2004). Energy and exergy analyses of drying of red pepper slices in convective type dryer. International Communications in Heat and Mass Transfer, 31(8), 1165–1176.http://doi.org/10.1016/j.icheatmasstransfer.2004.08.014

Akpinar, E. K. (2005). Energy and exergy aanalyses of drying of eggplant slices in a cyclone type dryer. Journal of Mechanical Science and Technology, 19(2), 692–703. https://doi.org/10.1007/BF02916191

Amanifard, N., Nariman-Zadeh, N., Borji, M., Khalkhali, A., & Habibdoust, A. (2008). Modelling and Pareto optimization of heat transfer and flow coefficients in microchannels using GMDH type neural networks and genetic algorithms. Energy Conversion and Management, 49(2), 311–325. https://doi.org/10.1016/ j.enconman. 2007.06.002

Amini, G., Salehi, F., & Rasouli, M. (2021). Drying kinetics of basil seed mucilage in an infrared dryer: Application of GA‐ANN and ANFIS for the prediction of drying time and moisture ratio. Journal of Food Processing and Preservation, 45(3). https://doi.org /10.1111/jfpp.15258

Azadbakht, M., Aghili, H., Ziaratban, A., & Torshizi, M. V. (2017). Application of artificial neural network method to exergy and energy analyses of fluidized bed dryer for potato cubes. Energy, 120, 947–958. https://doi.org/10.1016/j.energy.2016.12.006

Azadbakht, M., & Vahedi Torshizi, M. (2020). The antioxidant activity components change of pears subject to static and dynamic loads the antioxidant activity components change of pears subject to static and dynamic loads. International Journal of Fruit Science, 20, 1255–1275. https://doi.org/10.1080 /15538362. 2020. 1718053

Azadbakht, M., Vahedi Torshizi, M., Noshad, F., & Rokhbin, A. (2018). Application of artificial neural network method for prediction of osmotic pretreatment based on the energy and exergy analyses in microwave drying of orange slices. Energy, 165, 836–845. https://doi.org/10.1016/j.energy.2018.10.017

Corzo, O., Bracho, N., Vásquez, A., & Pereira, A. (2008). Energy and exergy analyses of thin layer drying of coroba slices. Journal of Food Engineering, 86(2), 151–161. https://doi.org/10.1016/j.jfoodeng.2007.05.008

Fathi, M., Mohebbi, M., & Razavi, S. M. A. (2011). Application of fractal theory for prediction of shrinkage of dried kiwifruit using artificial neural network and genetic algorithm. Drying Technology, 29(8), 918–925. https://doi.org/10.1080/ 07373937. 2011.553755

Kalathingal, M. S. H., Basak, S., & Mitra, J. (2020). Artificial neural network modeling and genetic algorithm optimization of process parameters in fluidized bed drying of green tea leaves. Journal of Food Process Engineering, 43(1). https://doi.org/10.1111/jfpe.13128

Karagüzel, İ., Tekİn, E., & Topuz, A. (2012). Energy and exergy analysis of fluidized bed drying of chickpea and bean. Scientific Research and Essays, 7(46), 3961–3973. https://doi.org/10.5897/SRE11.2003

Maleki, B., Ghazvini, M., Ahmadi, M. H., Maddah, H., & Shamshirband, S. (2019). Moisture estimation in cabinet dryers with thin-layer relationships using a genetic algorithm and neural network. Mathematics, 7(11), 1042. https://doi.org/ 10.3390/math7111042

Midilli, A., & Kucuk, H. (2003). Energy and exergy analyses of solar drying process of pistachio. Energy, 28(6), 539–556. https://doi.org/10.1016/S0360-5442(02)00158-5

Nazghelichi, T., Kianmehr, M. H., & Aghbashlo, M. (2010). Thermodynamic analysis of fluidized bed drying of carrot cubes. Energy, 35(12), 4679–4684. https://doi.org/ 10.1016/j.energy.2010.09.036

Nikbakht, A. M., Motevali, A., & Minaei, S. (2014). Energy and exergy investigation of microwave assisted thin-layer drying of pomegranate arils using artificial neural networks and response surface methodology. Journal of the Saudi Society of Agricultural Sciences, 13(2), 81–91. https://doi.org/ 10.1016/j.jssas.2013.01.005

Pusat, S., & Akkaya, A. V. (2022). Explicit equation derivation for predicting coal moisture content in convective drying process by GMDH-type neural network. International Journal of Coal Preparation and Utilization, 42(6), 1852–1865. https://doi.org/10.1080 /19392699.2020.1774563

Syahrul, S., Dincer, I., & Hamdullahpur, F. (2003). Thermodynamic modeling of fluidized bed drying of moist particles. International Journal of Thermal Sciences, 42(7), 691–701. https://doi.org/ 10.1016/S1290-0729(03)00035-8

Topic, R. (1995). Mathematical model for exergy analysis of drying plants. Drying Technology, 13(2), 437–445. https://doi.org/10.1080/07373939508916963

Vahedi Torshizi, M., Azadbakht, M., & Kashaninejad, M. (2020). A study on the energy and exergy of Ohmic heating (OH) process of sour orange juice using an artificial neural network (ANN) and response surface methodology (RSM). Food Science & Nutrition, 8(8), 4432–4445. https://doi.org/ 10.1002/fsn3.1741

Vahedi Torshizi, M., & Kashaninejad, M. (2022). Investigation of Changes in the Qualitative Properties of Sour Orange Juice during the Ohmic Heating Process. Food Engineering Research, 21(2), 1–14. https://doi.org/10.22092/fooder.2022.353850.1297

Ziaratban, A., Azadbakht, M., & Ghasemnezhad, A. (2017). Modeling of volume and surface area of apple from their geometric characteristics and artificial neural network. International Journal of Food Properties, 20(4), 762–768. https://doi.org/10.1080/ 10942912.2016.1180533
